Power controllers

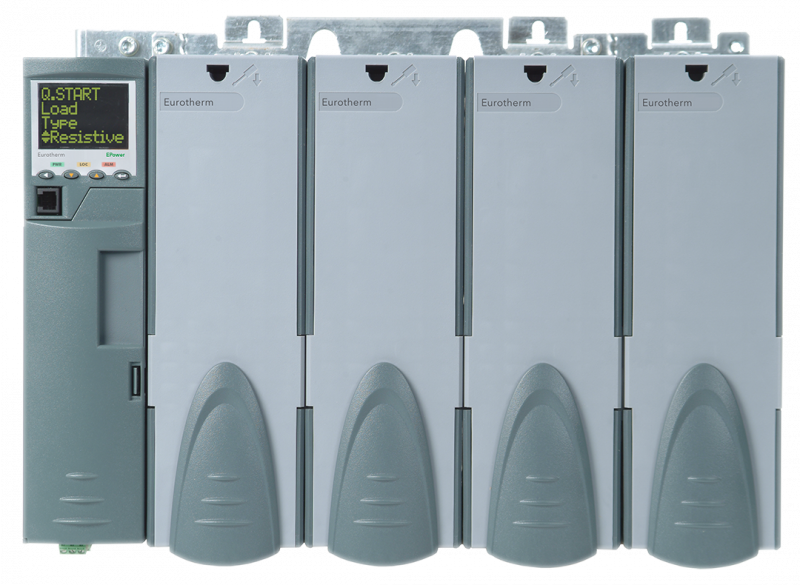

EPower controls use the latest technologies and innovations to control your process and reduce your energy costs. At any level, it gives you the flexibility you need to meet your requirements both now and in the future.

The EPower controller can be used for both ohmic resistors, transformer, silicon carbide, Mosi and SWIR.

Regulation of 1,2,3 or 4 phases up to 690V in all kinds of couplings.

Control signal via digital, analog or network. Supports both Modbus TCP, Ethernet IP, Profinet and Profibus.

Approvals: CE/UL/EAC/CCC/ROSH

• Modular Design
• Software Configurable
• QuickStart Easy Setup
• Advanced Configuration using Graphical Wiring Editor
• Predictive Load Management
• Flexible Communications

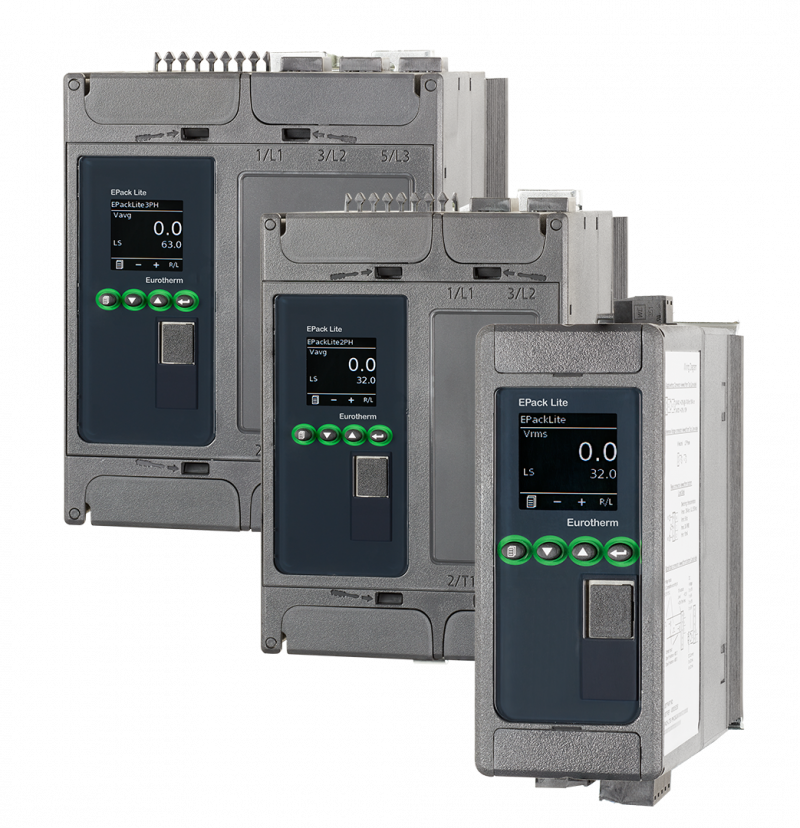

Epack lite power controller provides an energy-efficient solution for your plant that is easy to integrate.

With quick code setup, the device is easily set up directly on the front via display and push buttons.

A stable output voltage reduces temperature fluctuations on the heaters and at the same time helps to extend the life of the heaters. In addition, the precise detection of zero crossing points on the sine curves creates significantly less noise as well as more precise power control.

Epack Lite is available for controlling 1, 2 or 3 phases from 4 to 125 A.

Can be mounted in very little space also directly on YOUR rail in the board.

Do you also need a regulator? See our selection here.

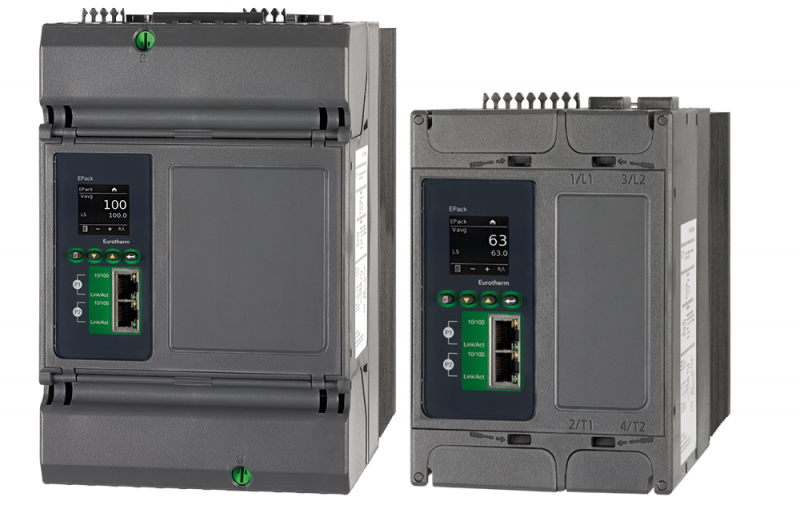

Epack power controller provides an energy-efficient solution for your plant that is easy to integrate.

With quick code setup, the device is easily set up directly on the front via display and push buttons.

A stable output voltage reduces temperature fluctuations on the heaters and at the same time helps to extend the life of the heaters. In addition, the precise detection of zero crossing points on the sine curves creates significantly less noise as well as more precise power control.

Epack is available for controlling 1, 2 or 3 phases from 4 to 125 A.

Can be mounted in very little space also directly on YOUR rail in the board.

Epack can also be ordered with graphical configuration via PC tool and energy measurement.

Communication:

Epack supports Modbus TCP, Ethernet IP, Profinet or EtherCAT.

If you only need the essential functions, and do not need network communication or nonvariable resistance loads, you can advantageously use the EPack™ Lite series.

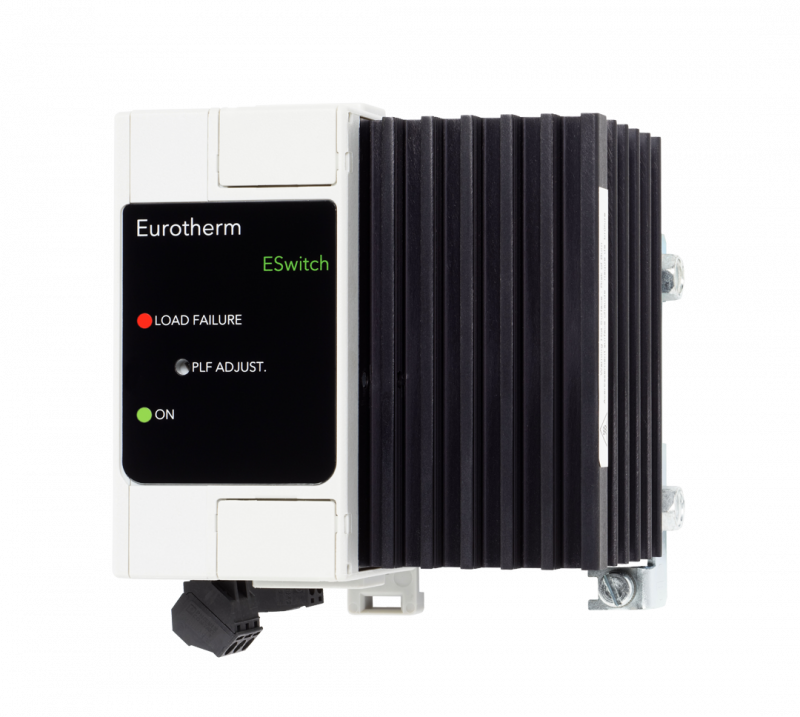

Electronic switch for controlling e.g. heaters with effects from 16 to 50A.

Eswitch ensures high uptimes and up to 7 times longer service life of heaters compared to ordinary contactors.

Diodes on the front show the status and possible faults. Easy mounting on DIN rail.

Control signal via digital logic AC/DC and mA signals.

Easy replacement for mechanical contactors:

Easy

• No configuration
• Simplified installation
• Global standardisation

Robust

• Reduce maintenance costs
• Reduce downtime
• Reliable operation

Safe

• Partial Load Failure alarm
• Heating circuit dysfunction prevention
• Red light PLF detection

EFit power controls give you uncompromising control for resistive and infrared heaters. It is easy to integrate and put into operation but at the same time extremely cost-effective. The EFit power controller is ideal for all heating applications and fully meets international standards for quality, immunity and emissions.

EFit achieves exceptionally stable, precise control in the most demanding industrial environments, even where closet space is minimal.

Can regulate loads from 16-50 A in 1 phase.

Efit supports external control signal via analog signals.

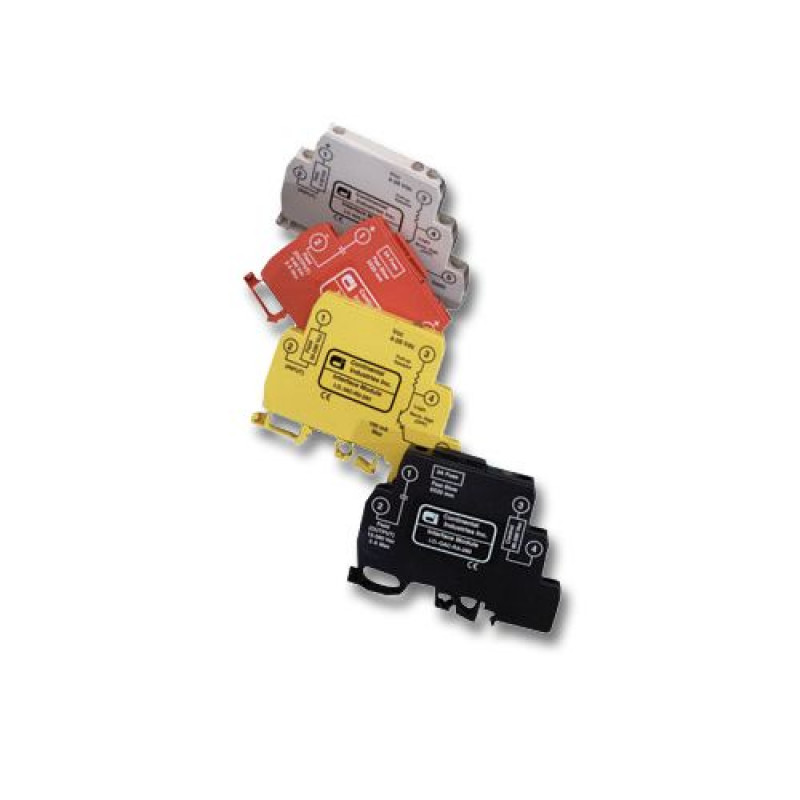

DIN Rail Mounted Mini Input/Output Modules and IO Series.

The IO Series of Mini Input/Output modules provide a high density, DIN Rail mountable device for low power heating loads or conversion of ac or dc control logic levels to a low level dc signal.
