Machine control, PLC and PAC

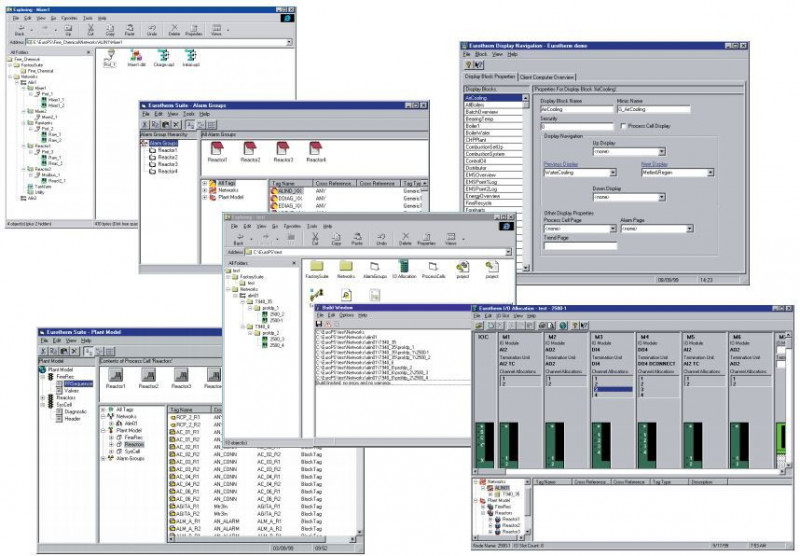

Eurotherm Project Studio is a set of graphical object oriented engineering tool for the configuration and commissioning of all Eurotherm products

• Engineering tools for process automation
• Single point configuration
• Integrated development environment

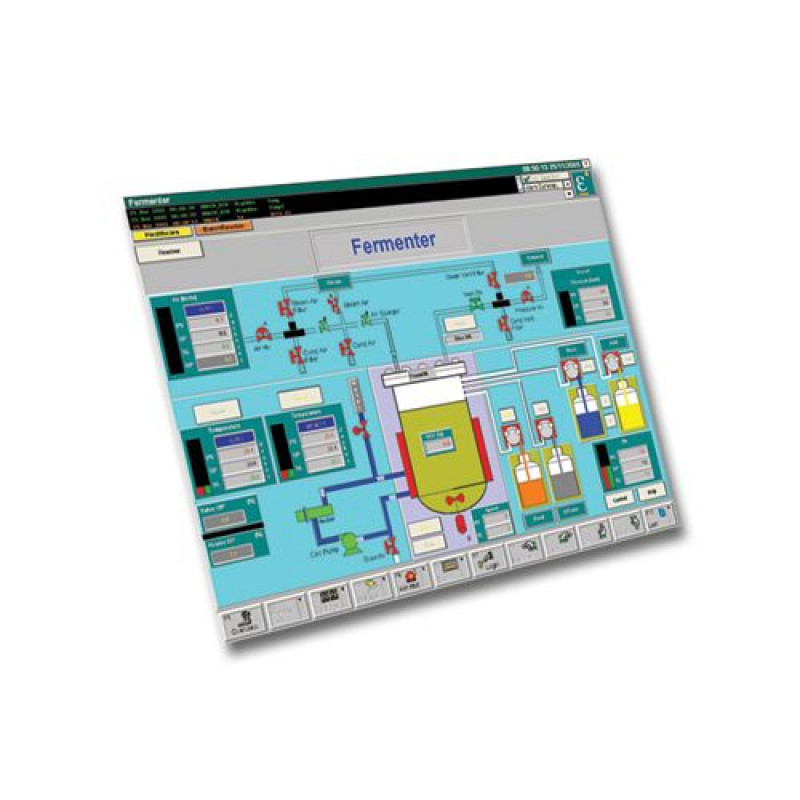

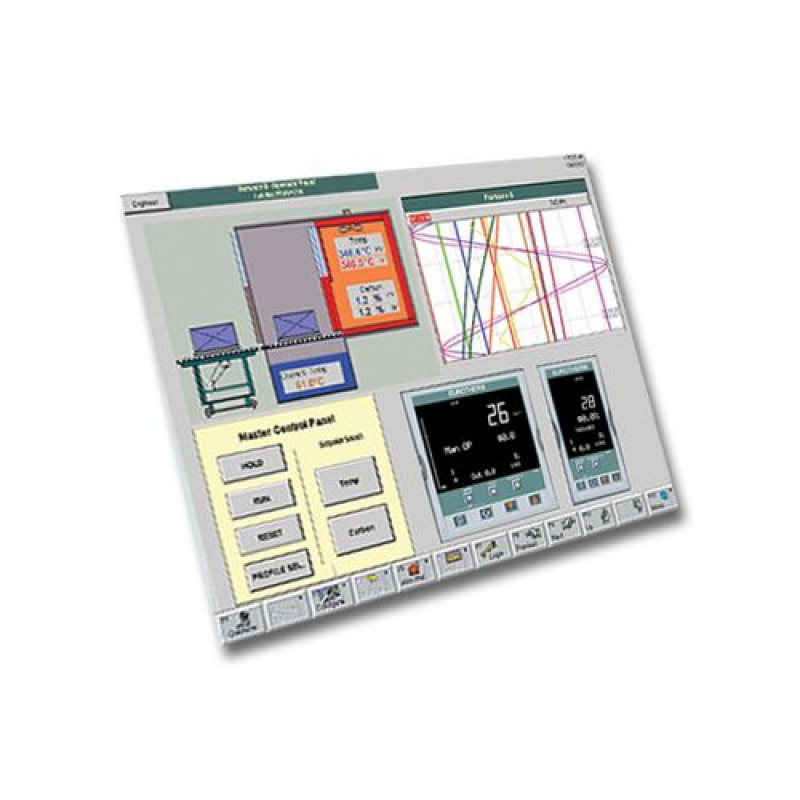

Process Viewer -bringing you unique levels of system integration

• Low cost HMI based on Wonderware® InTouch®  visualization software
• Use of iTools Active-X to visualize Eurotherm controllers
• Contains iTools and EuroMBUS OPC server
• LINtools and LIN OPC Server
• Serial and Ethernet communications support for all Eurotherm products

With the Process Viewer, Eurotherm offers unique levels of system integration within a low-cost HMI solution that can display all Eurotherm products. We meet this requirement by linking the Wonderware world leading InTouch HMI with Eurotherm iTools/EuroMBUS technology and LINtools/LINOPC to provide a solution that is very cost-effective.

• Contains latest Wonderware® InTouch® software
• Comprehensive user authorization and security available via Security Manager
• Supports Ethernet, ARCnet and serial connections
• Auditor features to meet 21 CFR Part 11

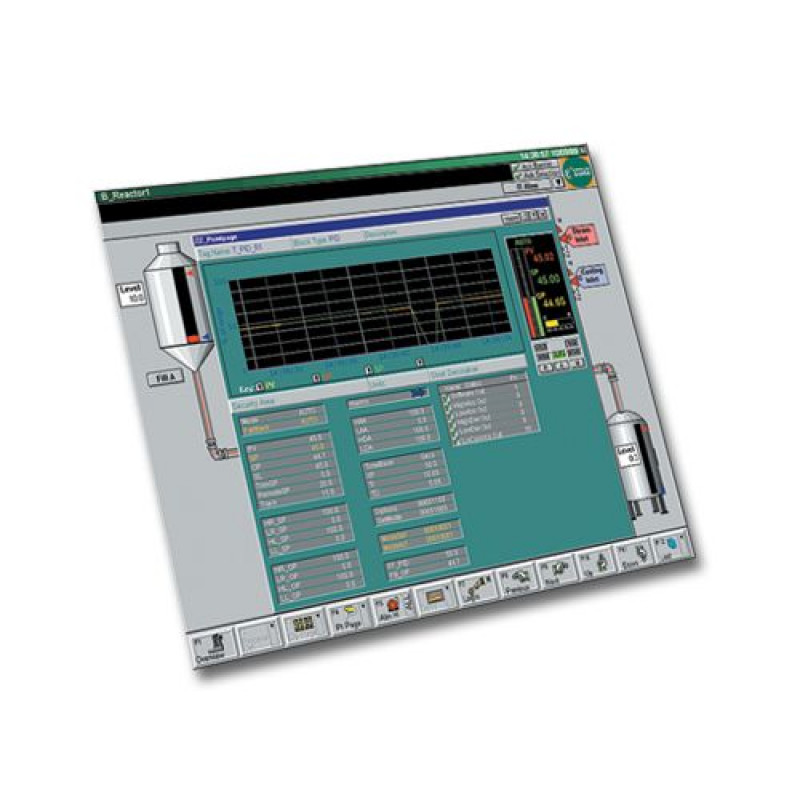

Operations Server and Viewer structure is a client/server architecture with specialised interfaces to provide fast and efficient alarm and realtime data transfer from control nodes to HMI screens. Operations Server provides direct connection to the control network supporting Ethernet TCP/IP stack, ARCnet and serial connections. Control network protocol support includes Eurotherm LIN and Modbus.

OPC Server for:

• Modbus devices
• LIN devices
• I/O drivers
• Intellution FIX32 and iFIX
• Wonderware® SuiteLink TM protocol
• Includes advanced communication diagnostic and monitoring tools

Information Manager provides system connectivity between the Eurotherm control network and the enterprise.

By directly accessing data, this real time historian package:

• Captures and stores all plant data all of the time
• Makes data accessible to entire organisation
• Uses embedded industry standard relational database
• Includes AVEVA Historian (formerly INSQL) software
• Up to 300 times faster than conventional relational database but only uses small amount of disk space
• Obtain data from Recorders using Review software

• Standard supervisory workstation interface
• Standard library blocks
• Operator faceplate
• Engineer point display

By providing control and application modules from a library of blocks, we can enable plant devices and equipment to be represented by dedicated objects designed to:

• Simplify the implementation
• Reduce testing time
• Provide tight integration at workstation level

Associated with each standard module is a custom-built point fascia, engineering point page and graphic mimic icon for the supervisory workstation.

Combining Multi-Function Control, Recording and Visualization in a Single Process Management Unit.

The EyconTM Series of Visual Supervisors provide innovative, multi-function control, recording and visualization – bringing expertise in control, data acquisition and process automation into a single process management unit.

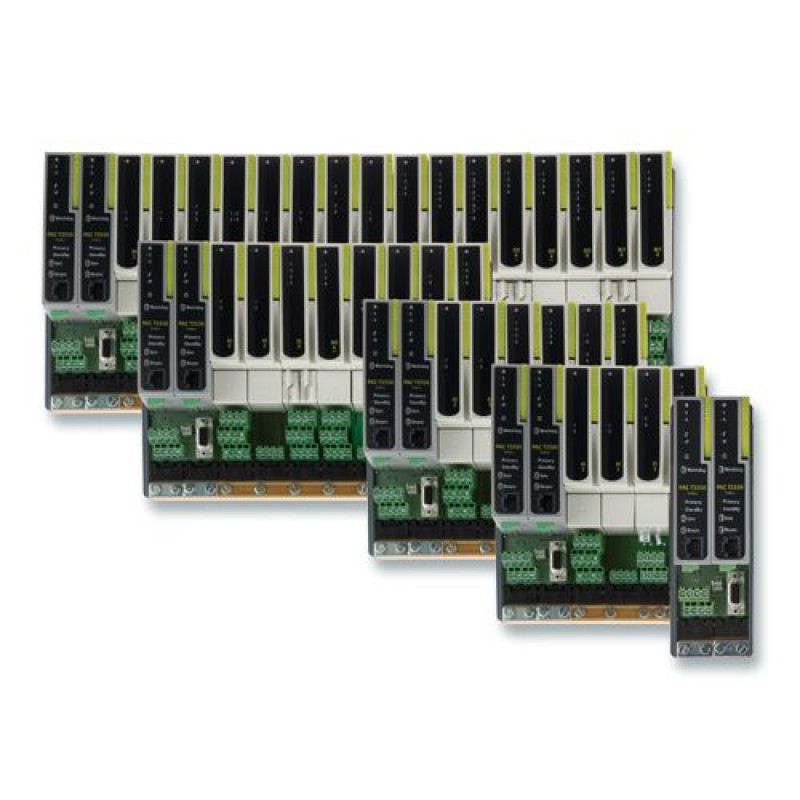

T2550 Programmable Automation Controller – The Most Affordable, High Availability PAC.

The T2550 PAC is a high performance solution offering extremely cost effective redundancy options – making high availability viable for more of your process.

• Cost effective controller redundancy – automatic commissioning, bumpless changeover, redundant communications
• Power supplies – redundant system supply
• High system availability – redundant CPUs with automatic takeover
• Online reconfiguration
• Redundant Data logging
• Hot swap I/O
• Alarm monitoring
• Signal conditioning
• IEC 61131 programming
• Advanced PID control

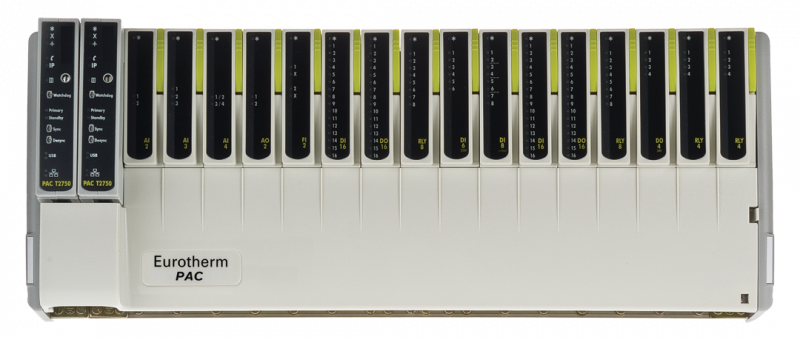

The T2750 PAC hardware provides high-performance control with cost-effective redundancy options in a versatile modular system. Powerful instruments, the control units, and the I/O system form the basis of a complete distributed control and recording environment. This environment is capable of continuous analog, logic, sequential control, batch management, secure data recording at point of measurement, and setpoint programming.

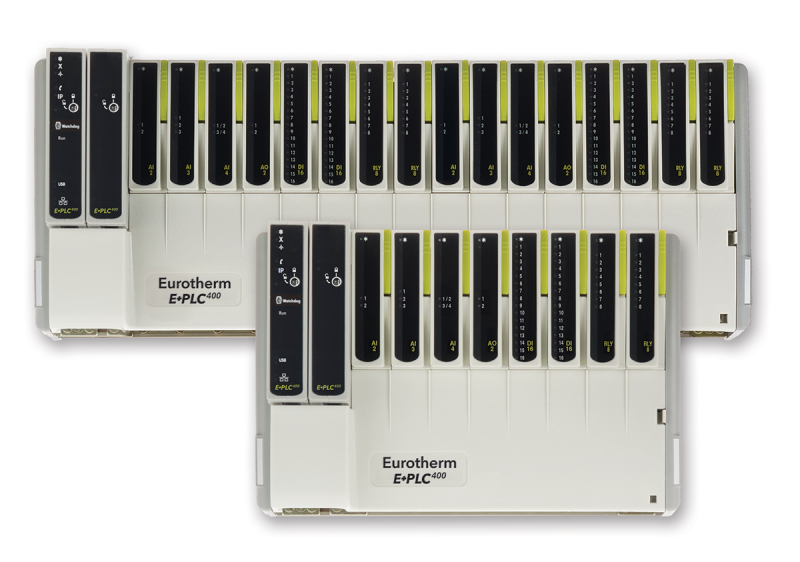

Advanced control, data management and visualization in a modular platform solution.

• A modular combination PLC with selectable base sizes to suit your application
• Precise control, setpoint programmer and tamper resistant recording fully integrated within a PLC application
• Minimizes engineering and commissioning costs while maximizing process performance
• Inbuilt advanced PID and setpoint programmer functions
• Continuous and batch recording
• Visualization remotely browsable from multiple devices
• More processing power and I/O, make it suitable for larger machines with more complex functionality
• Larger memory allows more extensive use of ladder logic and sequencing programs

Advanced control, data management and visualization in a single box solution.

• A compact combination PLC
• Precise control, setpoint programmer and tamper resistant recording fully integrated within a PLC application
• Minimizes engineering and commissioning costs while maximizing process performance
• Inbuilt advanced PID and setpoint programmer functions
• Continuous and batch recording
• Visualization remotely browsable from smart devices

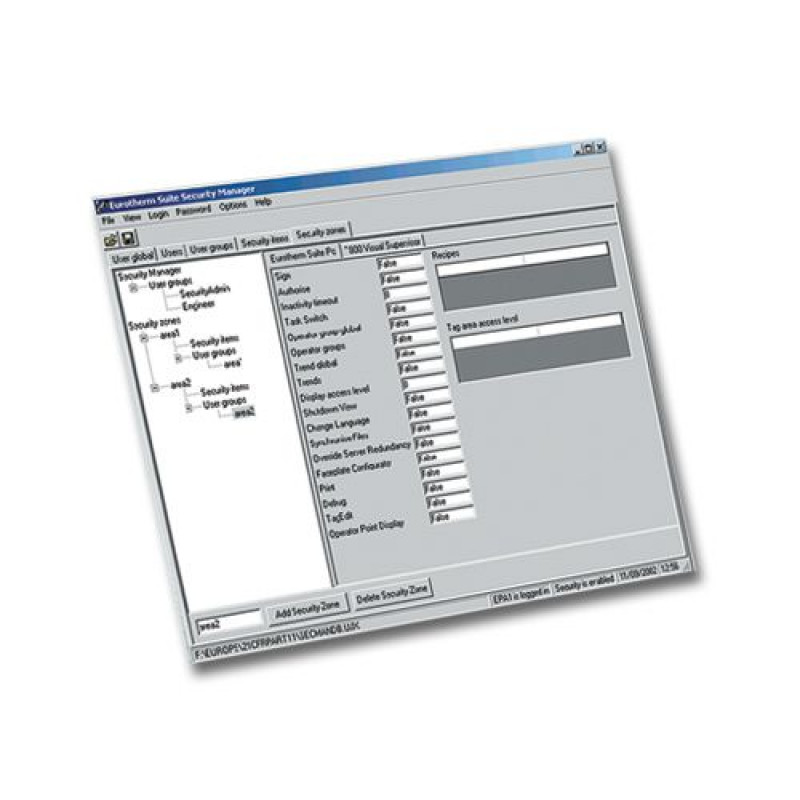

Security Manager – A Common Security Tool Across Multiple Ranges.

Security Manager configures:

• 5000 Series Recorder
• 6000 Series Recorder
• Eycon Visual Supervisor
• Operations Viewer
• Eurotherm Review & Review Quickchart

Increasingly more and more industries are making the transition to IT technology to resolve Data Acquisition and storage issues.

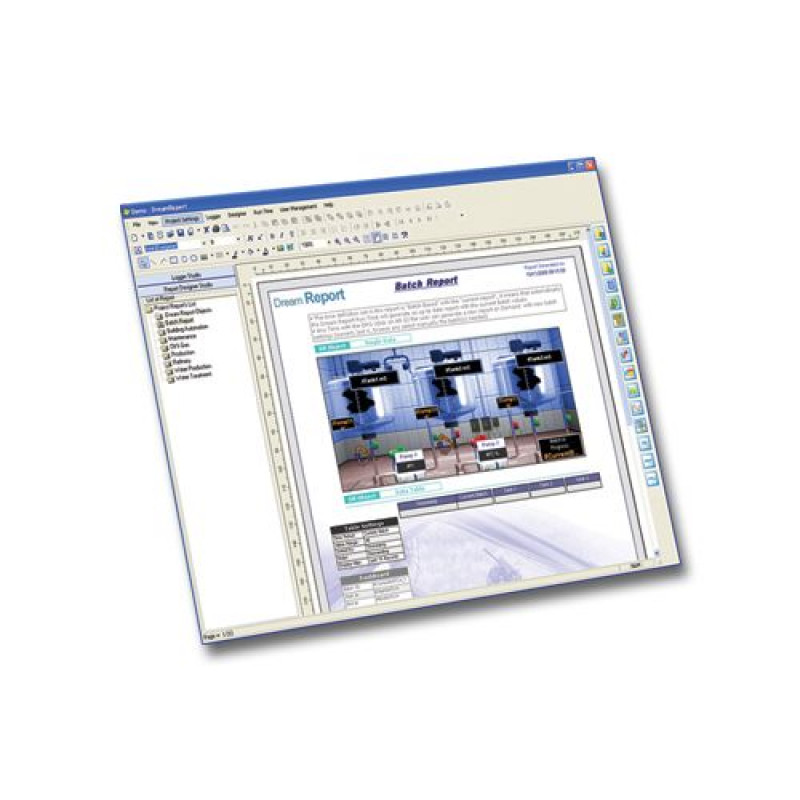

Dream ReportTM software from Eurotherm is an integrated reporting solution for industrial automation.  It is designed to be the simplest solution to extract data from almost any data source and automatically provide reports to anybody anywhere.  Built on modern technologies, Dream Report software fits perfectly for both continuous and batch process applications.

• Automatic and manual report generation
• Reduce engineering time
• Web portal for sharing information
• Continuous and batch reporting
• Generates secured PDF and export to Excel
• User Management module for security of your data
• Multi-lingual support
